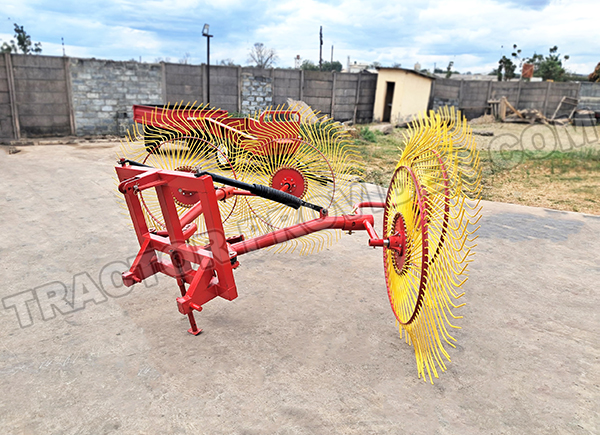

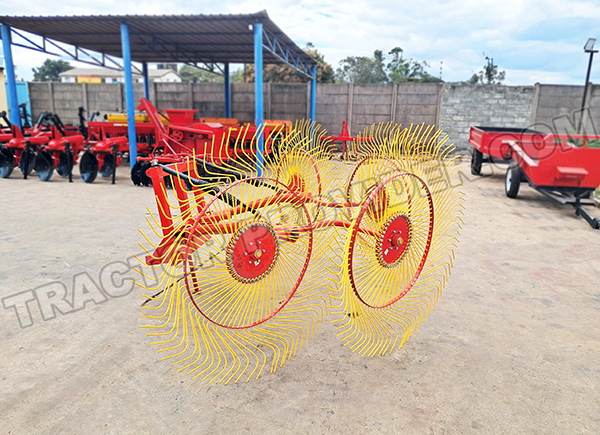

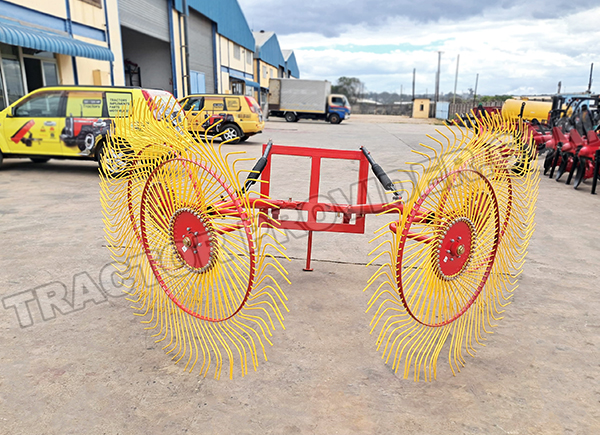

Wheel Hay Rake
This high-quality wheel hay rake is specially designed for use with four-wheel tractors. Equipped with durable 65Mn spring steel tines, it delivers reliable and long-lasting performance in the field. Its simple and sturdy design allows for easy operation, minimal maintenance, and efficient results. The machine can both rake and ted grass effectively. When paired with a lawn mower, it gathers multiple grass swaths into a single even row—streamlining the baling or bundling process. A perfect choice for modern and efficient hay management.
Advantage:
-
Easy to mount on four-wheel tractors – quick setup and compatibility
-
Dual function: rakes and teds grass – saves time and equipment
-
Durable 65Mn spring steel tines – long-lasting and wear-resistant
-
Combines multiple swaths into one – improves bundling/baling efficiency
-
Simple structure & user-friendly operation
-
Low maintenance and minimal breakdowns
-
High working efficiency and field performance
-
Ideal for modern hay and grass collection operations
Technical Specifications:
Specifications | 4 Wheels | |
Wheel diameter | 1460 mm | |
Total weight | 200 KG | |
Tractor power required | 30 Hp | |
Working width | 3000 mm | |
Collecting width of grass | 1~1.5 | |
Linkage | Three-point suspension |
